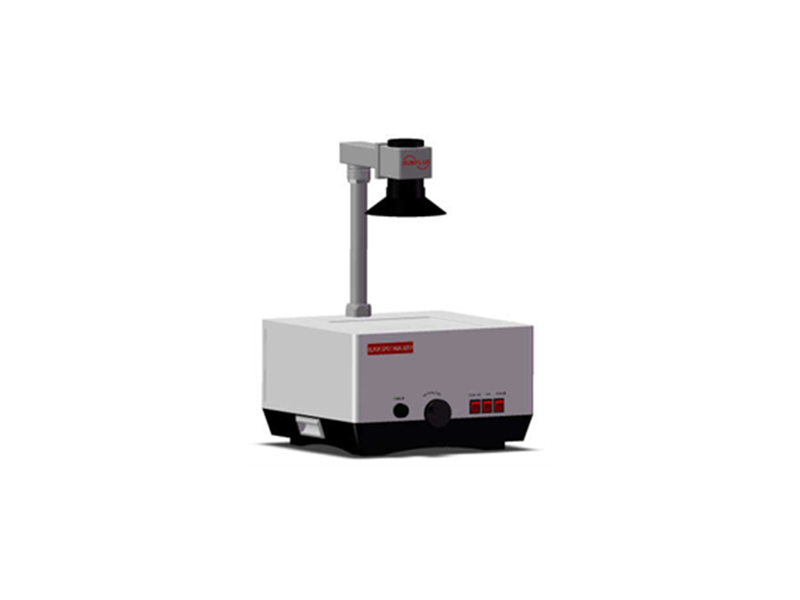

SunPlus 透明颗粒黑点检测仪

SunPlus 透明颗粒黑点检测仪

这是一款专为透明颗粒的杂质黑点和其它瑕疵斑点开发的颗粒外观检测仪,按相关国家标准分析透明颗粒的杂质黑点的大小、数量,以及黑点颗粒占比。除适用于透明颗粒外,本款仪器也可以使用于半透明、不透明的颗粒黑点检测。

用途Application

这是一款专为透明颗粒的杂质黑点和其它瑕疵斑点开发的颗粒外观检测仪,按相关国家标准分析透明颗粒的杂质黑点的大小、数量,以及黑点颗粒占比。

This equipment is developed to inspect the black spot or other defect speckles specially for transparent pellet. It evaluates the number and size of blackspot,as well as the ratio of blackspot in pellets, in accordance with relevant industry standard or code.

除适用于透明颗粒外,本款仪器也可以使用于半透明、不透明的颗粒黑点检测。

Besides for transparent pellet, it also is applicable for semitransparent or even opaque materials.


技术指标Specifications

1. 测量规格:0.1mm,0.15mm,0.2mm,0.3,0.4mm,0.8mm,…,等等,按用户要求,可在软件界面选定。

Measurement Range: 0.1mm,0.15mm,0.2mm,0.3mm,0.4mm,0.8mm,…,etc.,is selectable in software interface window by user.

2. 最小检测目标: 0.05mm

Min target radius:0.05mm

3. 检测精度: 小于 0.03mm

Resolution: less than 0.03mm

4. 测面积:不小于 120×120mm

Detection Area: Not less than 120×120mm

5. 器皿大小:120mm×120mm 净面积,用于颗粒黑点检测。

Tray size: 120mm×120mm,net area for bead blackspot inspection.

6. 放大倍数:>20 倍

Amplification: more than 20times.

7. 光密度:不小于 6000 流明

Light-intensity index : Not less than 6000 Lumens

8. 光源要求: 24V/60W

Illuminator bulb assembly: 24V/60W

9. 供电电源:220V,50HZ

Power Supply: 220V,50HZ

10. 外形尺寸:约 459mmⅹ426mmⅹ(276mm+380mm)

Dimension: around 459mmⅹ426mmⅹ(276mm+380mm)


仪器功能特点

1. 测量黑点的大小和数量,以及黑点颗粒占比数。

Detects the size and quantity of blackspot,as well as the ratio of BS in beads.

2. 有效消除颗粒边沿的黑影对黑点识别的影响,提高了检测的准确性。

Effectively eliminate the black shadow from pellet border area to improve the accuracy of inspection.

3. 可提供黑点的分布图谱。

Provides mapping of blackspots.

4. 黑点分布可放大和缩小。

Ability to zoom in and out to view blackspot. Showing in detail the texture shape of it.

5. 被测目标可分类计数和统计。

Counting and classification of the targets being measured.

6. 按适用的标准自动生成检测报告。

Automatically generates Inspection Report based on different standard or code.

7. 报告和图谱可打印可储存。

Report and Mapping is printable or can be saved.

8. 不仅提供一键检测功能,实现自动检测,提高效率,还提供人工检查和复核功能,提高检测结果的有效性。

Provides functions not only with One-Key-Test,an automatic inspection function to increase efficiency,but also with a second double check function,a mannerly checking and modification function to improve effectiveness.

9. 颗粒以透明器皿为载体,批次检测。

Pellet is inspected by using transparent tray in batch.


仪器的配置

SP-BS-1908PT 杂质黑点检测仪

Type of SP-BS-1908 Blackspot Detector.

电脑工作站

Working Station of Computer.

样品皿 (测颗粒用)

 Sample tray ( be used for bead inspection)

应用软件

Application Software.
