SunPlus SP-Y-1908 型自动鱼眼测定仪

用途Application

按相关国家标准分析薄膜或树脂的鱼眼大小和数量。

This equipment evaluates the number and size of fish-eye in film in accordance with relevant industry standard or code.

适用于透明、半透明、不透明的薄膜或树脂片，如PP、PE、PVC 等等。

Applicable for detection and analysis of inner defect objects in transparent or semitransparent or even opaque film and resinsheet,such as PP,PE,PVC，etc.

也适用玻璃、亚克力板等透明体的内在疵点的检测和分析。

Also can be used to detect and analyze defect of inner quality in transparent glass or PMMA.

适用标准Applying Standards

GB6595-86、ASTM 3351-93、GB/T 4611-2008、GB/T 11115-2009，or any standard, depending on material of film or resin.

技术指标Specifications

1. 测量规格：0.2mm,0.3,0.4mm,0.8mm 等,按选用的标准，可在软件界面选定。

Measurement Range: 0.2mm,0.3mm,0.4mm,0.8mm,etc.,up to relevant code being applied， and is selectable via software.

2. 测量单元： 2000 万像素CCD + 高清镜头

Senser unit: 20 million pixel CCD with high resolution lens.

3. 最小检测目标： 0.1mm

Min target radius：0.1mm

4. 检测精度： 小于0.035mm

Resolution: less than 0.035mm

5. 检测面积：不小于200×200mm

Detection Area: Not less than 200×200mm

6. 放大倍数：>20 倍

Amplification: more than 30times.

7. 光密度:不小于6000 流明

Light-intensity index : Not less than 6000 Lumens

8. 光源要求: 24V/60W

Illuminator bulb assembly: 24V/60W

9. 供电电源：220V,50HZ

Power Supply: 220V,50HZ

10. 外形尺寸：约459mmⅹ426mmⅹ(276mm+380mm)

Dimension: around 459mmⅹ426mmⅹ(276mm+380mm)

仪器功能特点

1. 测量鱼眼的大小、条纹长度和粗细。

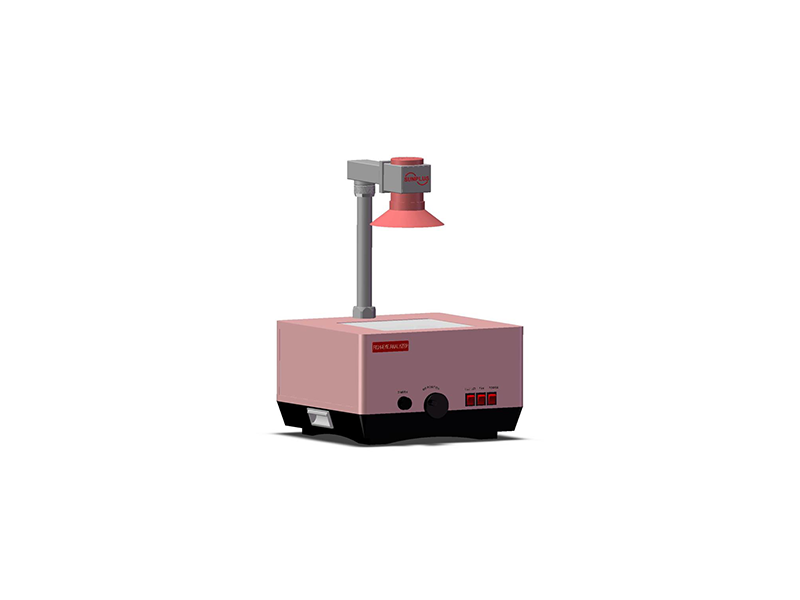

Detects fish-eye size, striation length and width. SP-Y-1908 自动鱼眼仪

2. 可提供鱼眼和条纹的分布图谱。

Provides mapping of fish-eye and striations.

3. 鱼眼和条纹的放大和缩小，观测鱼眼的质地形状。

Ability to zoom in and out to view fish-eye and striation in sample. Showing in detail the texture shape of fish-eye.

4. 鱼眼斑点和条纹可储存、复制、黏贴、打印。

Can save, copy, paste, print fish-eye spots and striations.

5. 被测目标可计数和统计。

Counting and classification of the targets being measured.

6. 按适用的标准自动生成检测报告。

Automatically generates Detection Report based on different standard or code.

7. 用户可按自己的要求设计和编辑检测报告。

Detection Report can be customized by user.

8. 报告和图谱可打印可储存。

Report and Mapping is printable or can be saved.

9. 进膜方向与屏幕显示的走向一致，友好的界面视觉感。

Film feeding direction is same as the moving direction of display on the computer screen with friendly interface design.

10. 应用软件一键计算功能，可适用所有透明薄膜的检测计算和判断。

Software is applied for all transparent film inspection by only One-Button function.

仪器的配置

 SP-Y-1908 自动鱼眼检测仪Type of SP-Y-1908 Smart Fish-eye Detector；

 标准板Standard Plate for Calibration；

电脑工作站Working Station of Computer；

应用软件Application Software.
