用途Application Summary
▲实时检测吹膜薄膜的表面疵点,如鱼眼、污点、杂质、破洞、斑块、条纹等。
Detect and analyze defects on blow film surfaces in real-time. Examples include fish-eye, stain, impurity, hole, spots, plaque, strip,etc.
▲薄膜材质可以是PP、PE、PVC 或其它树酯膜。
Applicable film material include PP,PE,PVC or any other resin based film.
▲对透明薄膜的检测,是本系统的特点所在,但也可以检测其它不透明膜。
The unique system is designed for transparent film detection, but it can also be used to detect defects in opaque film.
适用标准Applicable Standards
GB6595-86、ASTM 3351-93、GB/T 4611-2008、GB/T 11115-2009,or any
standard, depending on film or resin material.
技术指标Technical Specifications

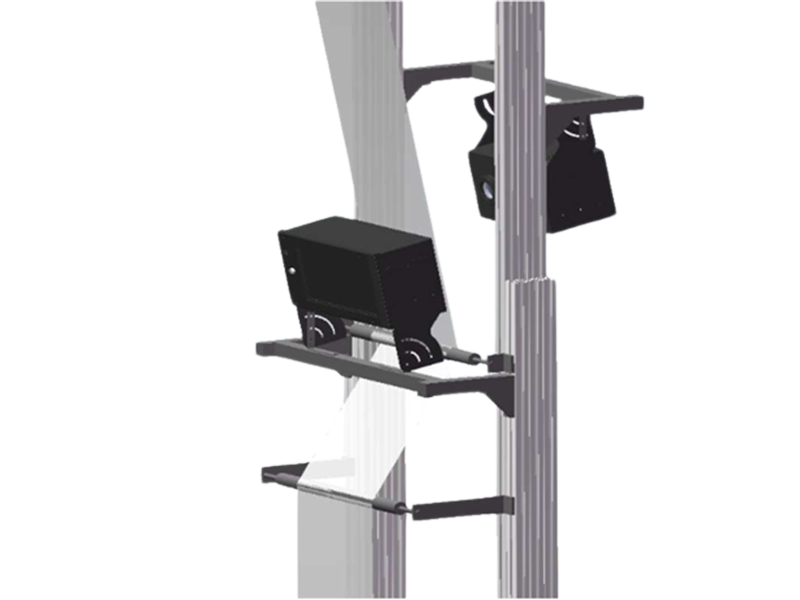

Model FSD-300 Blow Film Surface Detector
1. 适用薄膜宽度: 340mm 及以下.
Applicable film width : 340mm or lower
2. 最小检测目标:0.05mm, 需更小时可选用不同的CCD
Min. target radius:0.05mm. Also available in smaller target radius with different CCD.
3. 检测精度:最大分辩 30μm,需更小时可选用不同的CCD
Resolution: Max 0.03mm. Also available in smaller resolution with different CCD.
4. 检测元件:面阵CCD
Sensor: area-scan CCD.
5. 薄膜移动速度: 18m/min 以下。
Film moving speed: less then 18m/min.
6. 通讯接口: RS232/RS485/Ethernet/USB
Communication interface: RS232/RS485/Ethernet/USB
7. 光源:LED 冷光源30W
Light assembly: LED cold light, 30watt.
8. 电源: 220VAC 50Hz
Power supplier: 220VAC 50Hz
9. 外形尺寸(长ⅹ宽ⅹ高): upper unit: 230mmⅹ131mmⅹ108mm
Assembly Dimension( LⅹWⅹH): lower unit: 272mmⅹ160mmⅹ252mm
仪器功能特点 Application Highlights
1. 实时检测薄膜的疵点大小、数量和分类统计
Real-time detection of defects size , quantity and classification.
2. 可以检测薄膜的边界尺寸
Can detect film size.
3. 界面显示薄膜面的实测状况及图像
Displays image of of detected film surface in real time.
4. 界面图像可放大缩小以便于观测目标点的细节
Displayed detection area can be zoomed in and out for detail observation of target.
5. 检测结果可储存,可打印
Detection result can be saved and printed.
6. 按要求的检测表格输出,并包含产品的生产信息
Inspection Report can be customized based on user requirements to include production information.
7. 检测表格的项目可编辑修改,以确定合格的标准设定
Inspection Report can be updated to match new acceptance criteria.
8. 历史数据和图表可分类显示及趋势
Historical data or chart can be displayed for classification.
9. 精巧的设计结构。小型化现场安装,外形结实美观
Minimal footprint, elegant exterior, professionally designed for industrial and commercial applications.
